Name: AAC-120-4XT-HCF
SKU: AAC-120-4XT-HCF
Price: 1330.00 USD
Availability: InStock

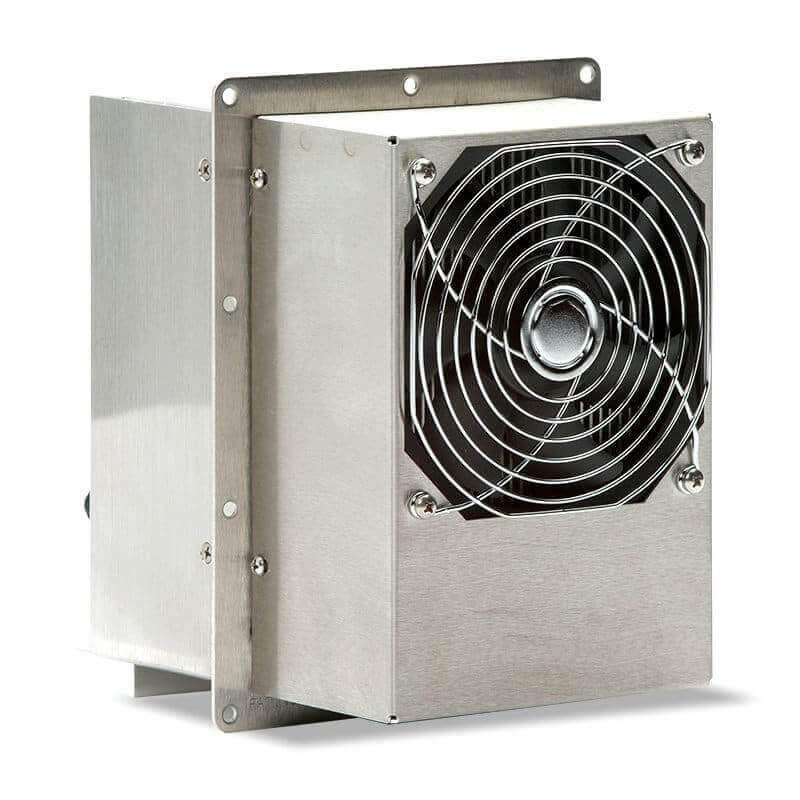

ThermoTEC™ Series - 200 BTU - Solid State Thermoelectric Air Conditioner - Heating/Cooling - Flush-mount - NEMA 4X

Compact, lightweight, 200 BTU/HR thermoelectric cooling and heating system for electronic and computer enclosures in harsh industrial settings. Unit features a simple, efficient solid state design for reliable performance.

*To place an order, please Request a Quote.

Specifications

Cooling Capacity	200 BTU/HR
Heating / Cooling	Heating/Cooling
Mounting	Flush-mount
NEMA Rating	NEMA 4X – Indoor/Outdoor
Construction	Stainless steel (covers and mounting flange)
Dimensions	7 1/4"H x 5 1/8"W x 7"D body, 8 1/4"H x 6"W flange
Operating Range	Up to 140 degrees F (DC-powered models) and up to 104 degrees F (AC-powered models) (High ambient models available)
Temperature Control	Adjustable thermostat
Power	120 VAC, 50/60 Hz at 2 AMPS (220 VAC, 50/60 Hz at 1 AMP and 12/24/28/48 VDC optional)
Frequency	50/60 Hz
Features	Power supply with polycarbonate case & 9' power cord
Includes	Self-contained condensate drip pan, mounting hardware and gasket
Weight	10 lbs.
Warranty	One year

AAC-120-4XT-HCF

ThermoTEC™ Series - 200 BTU - Solid State Thermoelectric Air Conditioner - Heating/Cooling - Flush-mount - NEMA 4X
